An air-cooled chiller is a cooling system that removes heat from water using ambient air. It includes compressors, condenser fans, and evaporators, and releases heat directly into the atmosphere instead of using cooling towers.

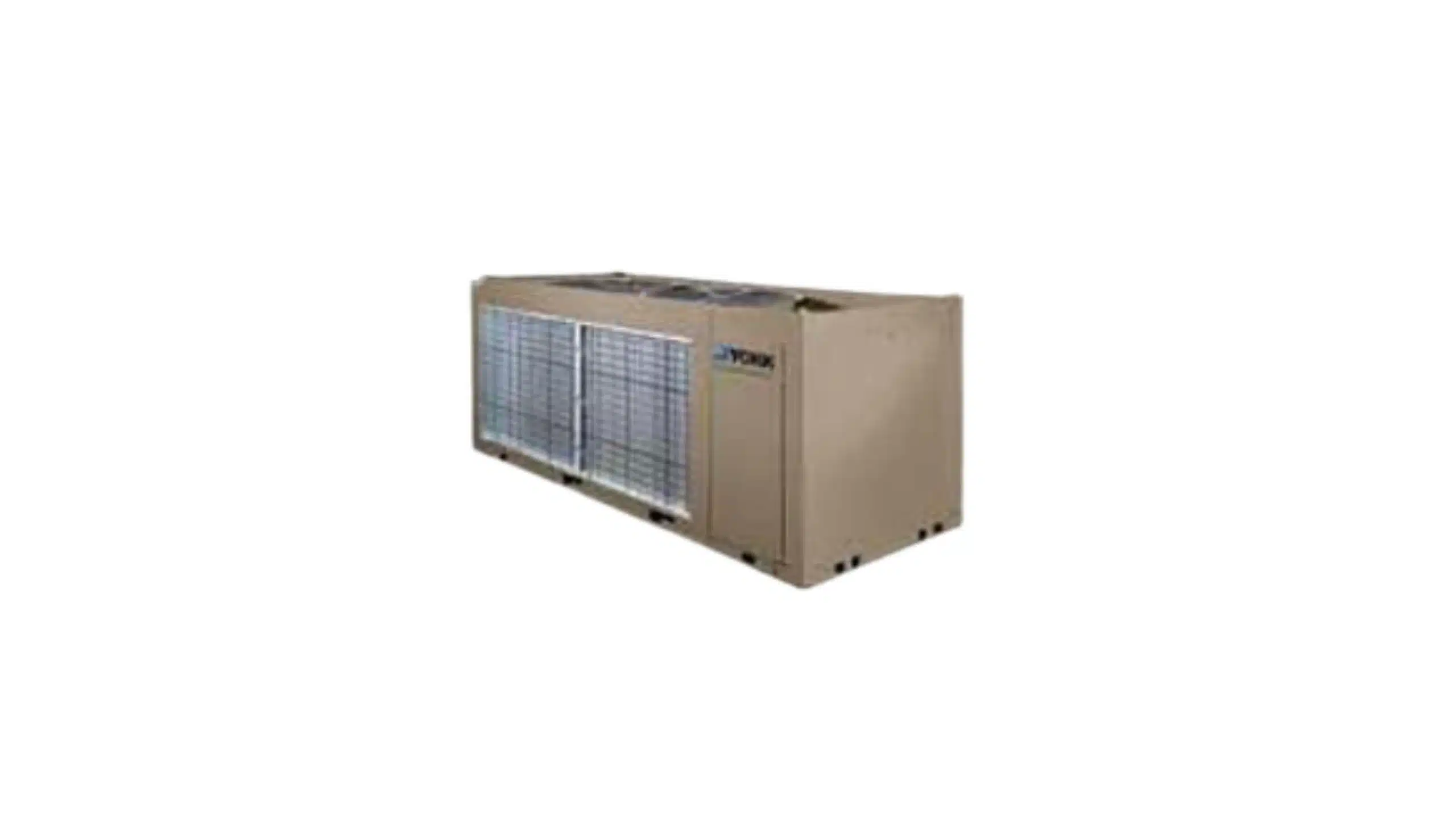

Model YCAL – scroll compressor Refrigerant: HFC-410A Standard Features: brazed plate heat-exchanger, BAS communications, service isolation valves, high-ambient kit to 125°F Available Options: remote-evaporator option, hot-gas bypass, factory-mounted hydronic-pump kit, low-ambient kit to 0°F

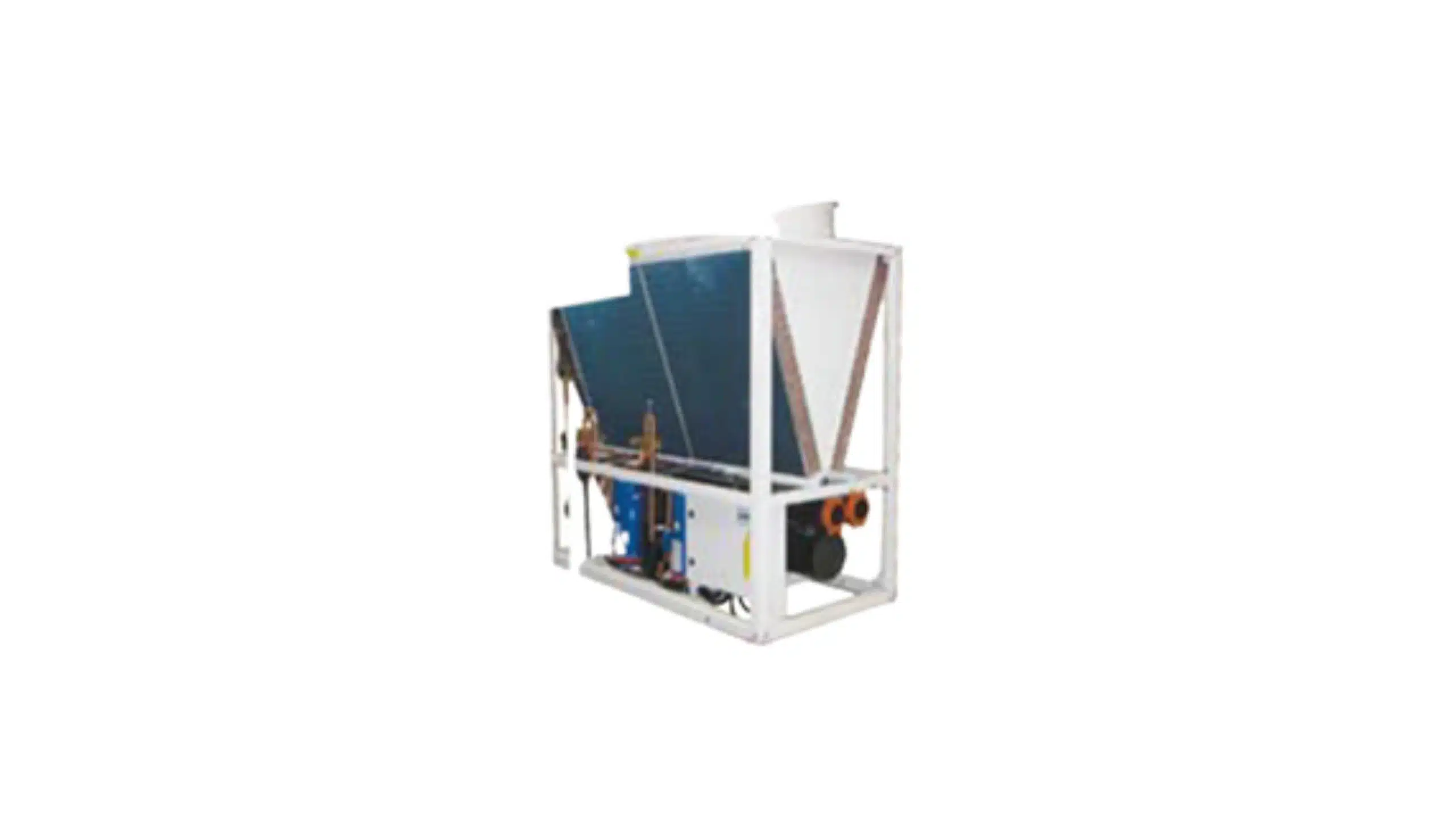

Model YCAE – Modular AC scroll compressor
Refrigerant: HFC-410A
Standard Features: shell-and-tube evaporator, cu-tube Al-fins coil, BAS communications, high-ambient kit to 125°F
Available Options: heat-recovery capability, remote-evaporator option, multi level capacity adjustment, low noise and wide range operation.

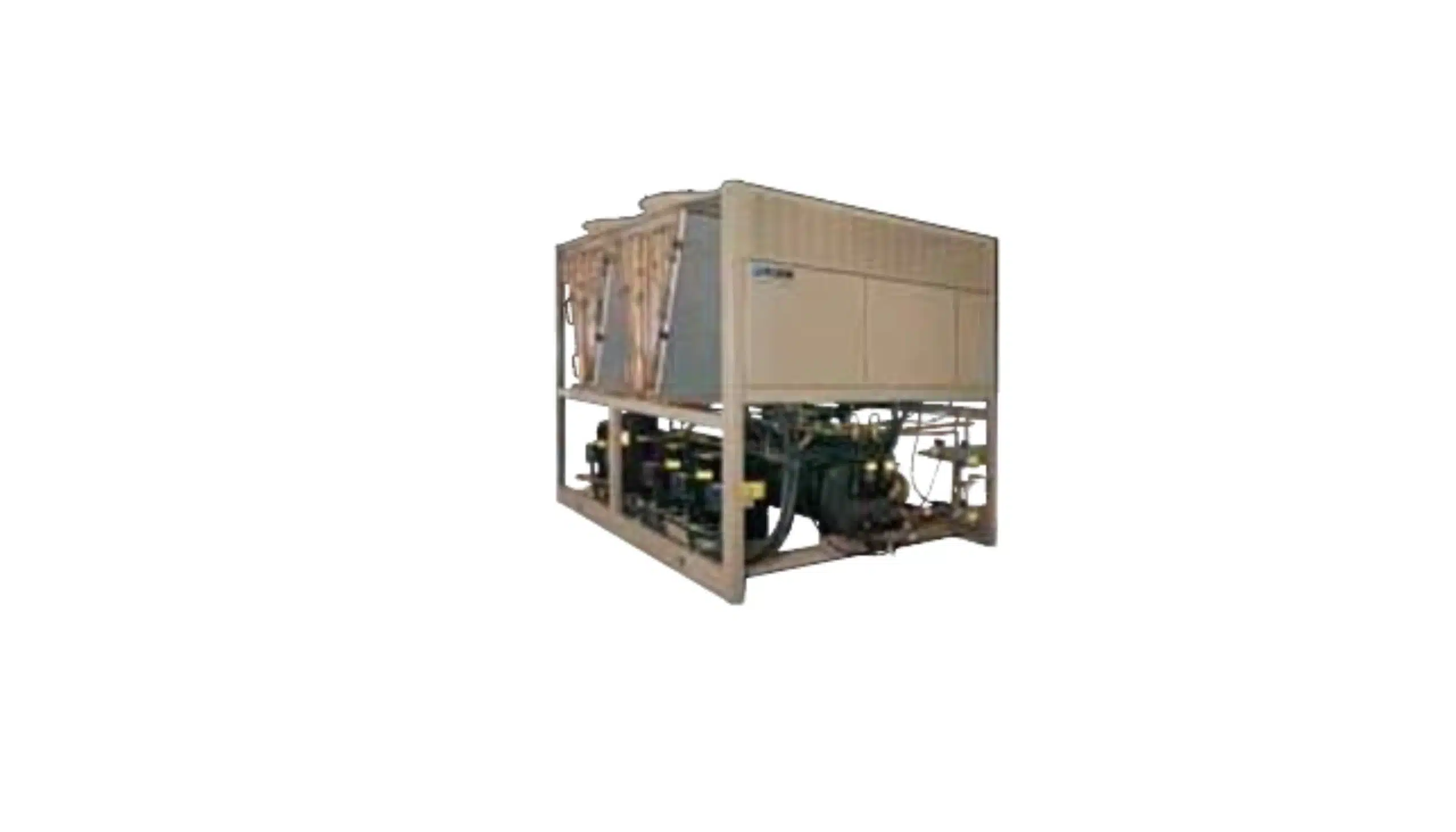

Model YLAA – scroll compressor Refrigerant: HFC-410A Standard Features: shell-and-tube evaporator, microchannel Condenser, BAS communications, high-ambient kit to 125°F Available Options: heat-recovery capability, remote-evaporator option, hot-gas bypass, factory-mounted hydronic-pump kit, low-ambient kit to 0°F, dual-point power, conventional tube-and-fin coils

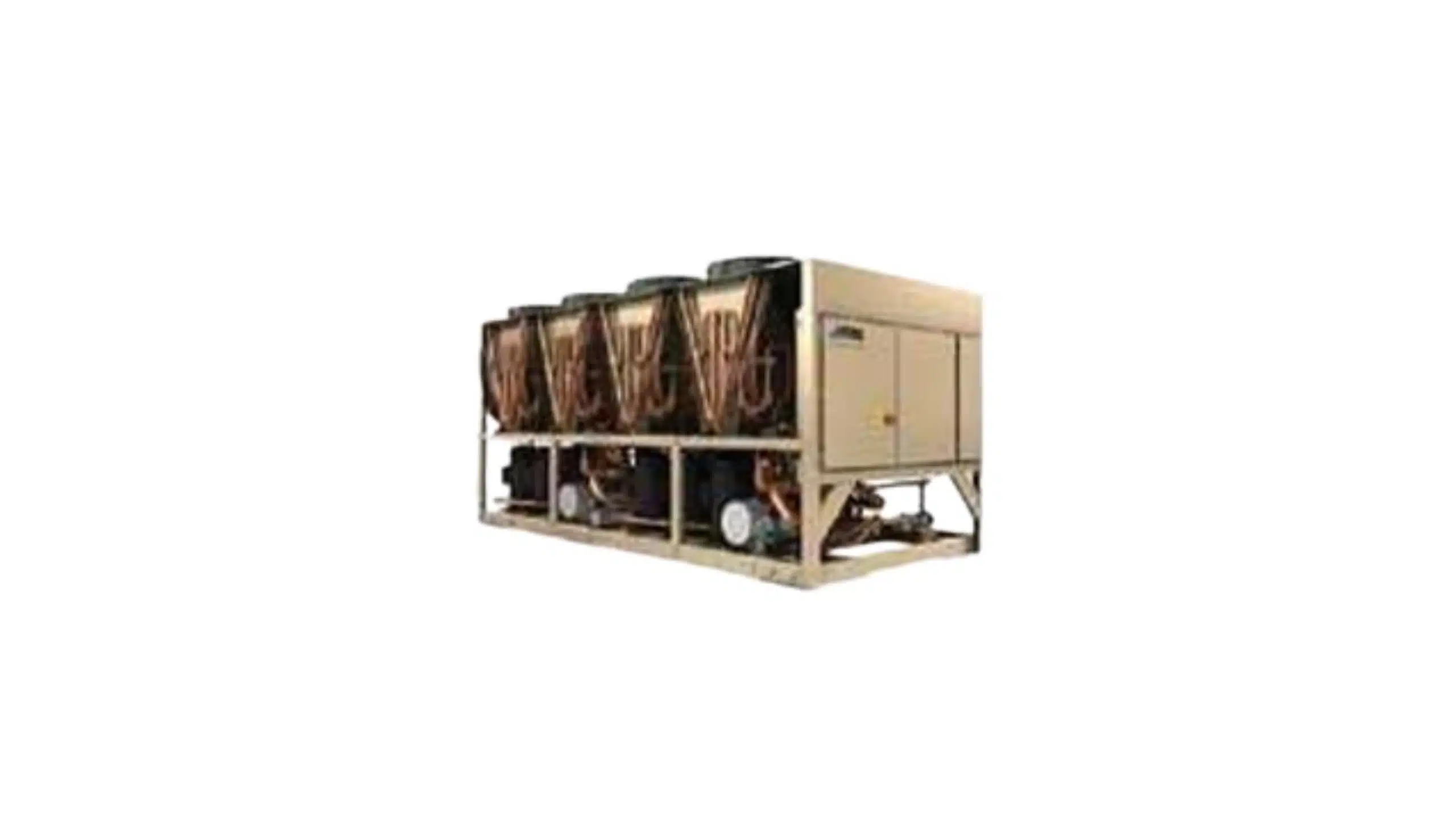

Model YLPA Heat Pump – scroll compressor Refrigerant: HFC-410A Standard Features: shell-and-tube evaporator, fin-and-tube ambient coils, patented liquid-distribution system, reversible with 4-way valve, BAS communications, up to 130°F hot water. Available Options: single-point circuit breaker, sound-reduction packages

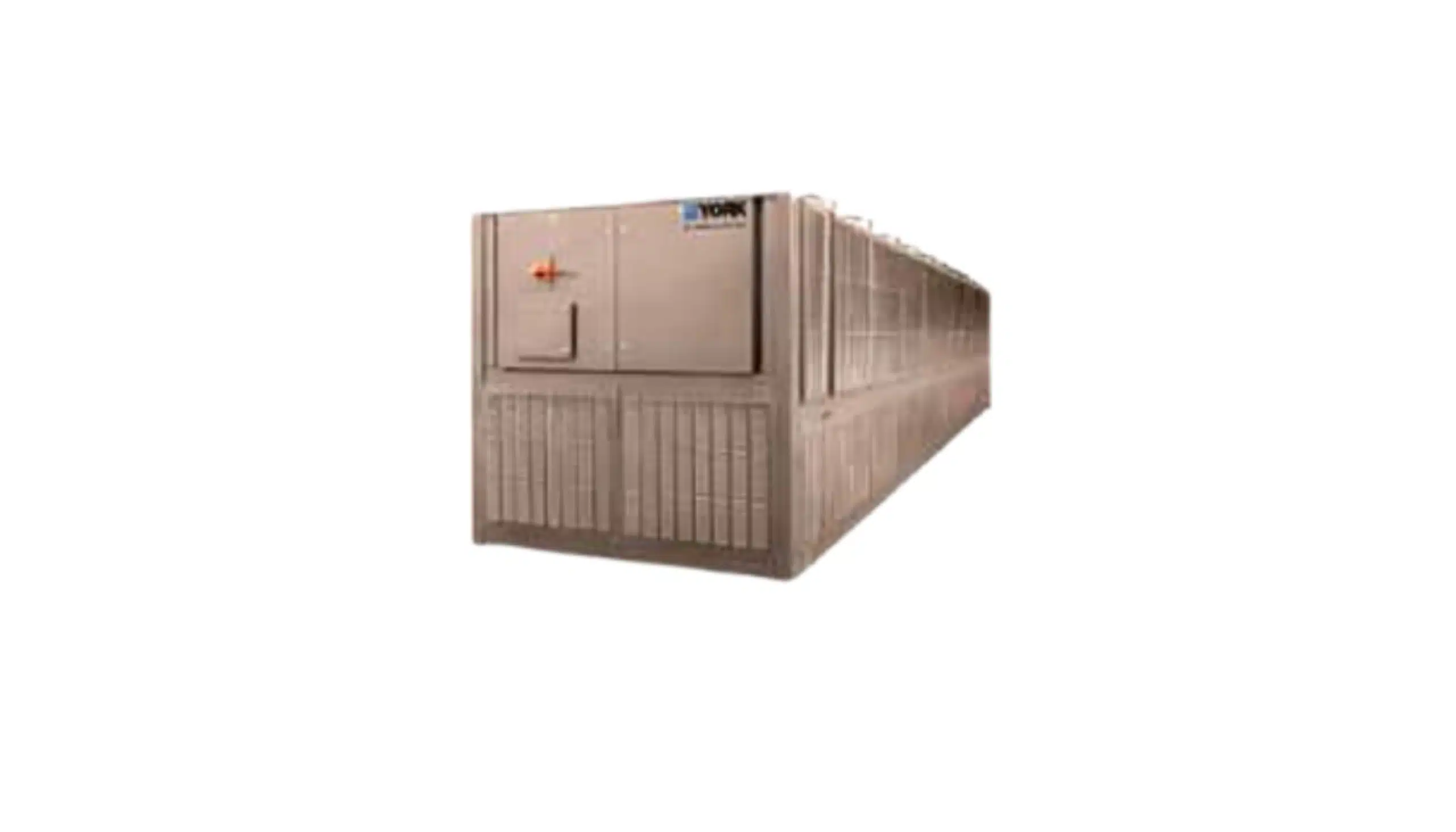

Model YVAA – VSD screw compressor Refrigerant: HFC-134a Standard Features: Variable-speed drive, hybrid falling-film evaporator, micro channel / copper tube condenser coil operation from 0°F to 125°F ambient, capacity turndown to 10% load Available Options: Industry-leading IPLVs, sound-reduction packages, BAS communications
