An absorption chiller is a cooling system that uses heat instead of electricity to produce chilled water. It operates by using a refrigerant–absorbent pair (usually water–lithium bromide) and drives the cooling cycle through thermal energy from steam, hot water, waste heat, or solar heat.

Home

abrorbtiou chiller

HOT WATER

  1. Single effect Hot Water
  2. Model: YHAU-CHW 30-200 TR
  3. Capacity: 105-704 kW
  4. Applications: Combined heat and power (CHP), commercial cooling, industrial process cooling

LOW TEMPERATURE HOT WATER

  1. Single Effect Double Lift Hot Water
  2. Model: YHAU-CL-DXS
  3. Capacity: 176 – 4,395 kW / 50 – 1,250 TR
  4. Application: Combined heat and power (CHP), commercial cooling, industrial process cooling

LOW PRESSURE STEAM

  1. Single Effect Steam
  2. Model: YHAU-C
  3. Capacity: 105 – 7,034 kW / 30 – 2,000 TR
  4. Application: Combined heat and power (CHP), commercial cooling, industrial process cooling

MEDIUM PRESSURE STEAM

  1. Double Effect Steam
  2. Model: YHAU-CW
  3. Capacity: 422 – 14,067 kW / 120 – 4,000 TR
  4. Application: Combined heat and power (CHP), commercial cooling, industrial process cooling

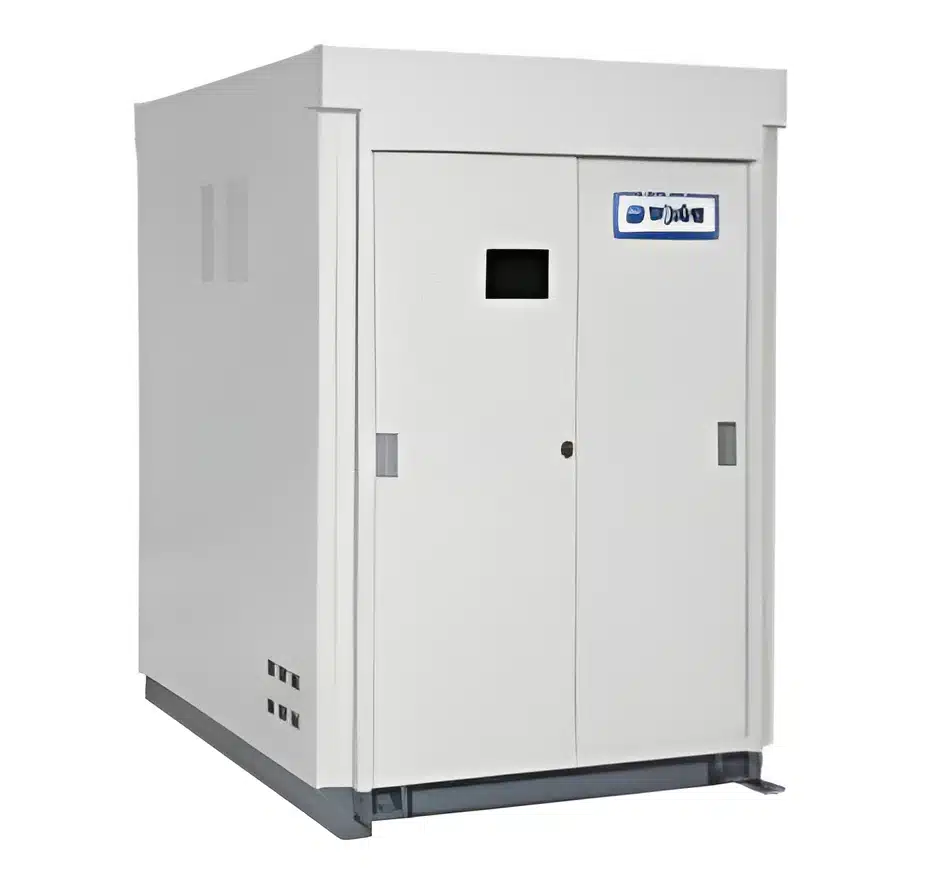

DIRECT FIRED

  1. Small Double Effect Natural Gas or Light Oil*
  2. Model: YHAU-CG/CA-CYR
  3. Capacity: 105 – 352 kW / 30 – 100 TR
  4. Application: Commercial cooling

DIRECT FIRED

  1. Large Double Effect Natural Gas or Light Oil
  2. Model: YHAU-CG/CA
  3. Capacity: 422 – 5,626 kW / 120 – 1,600 TR
  4. Application: Commercial cooling, industrial process cooling

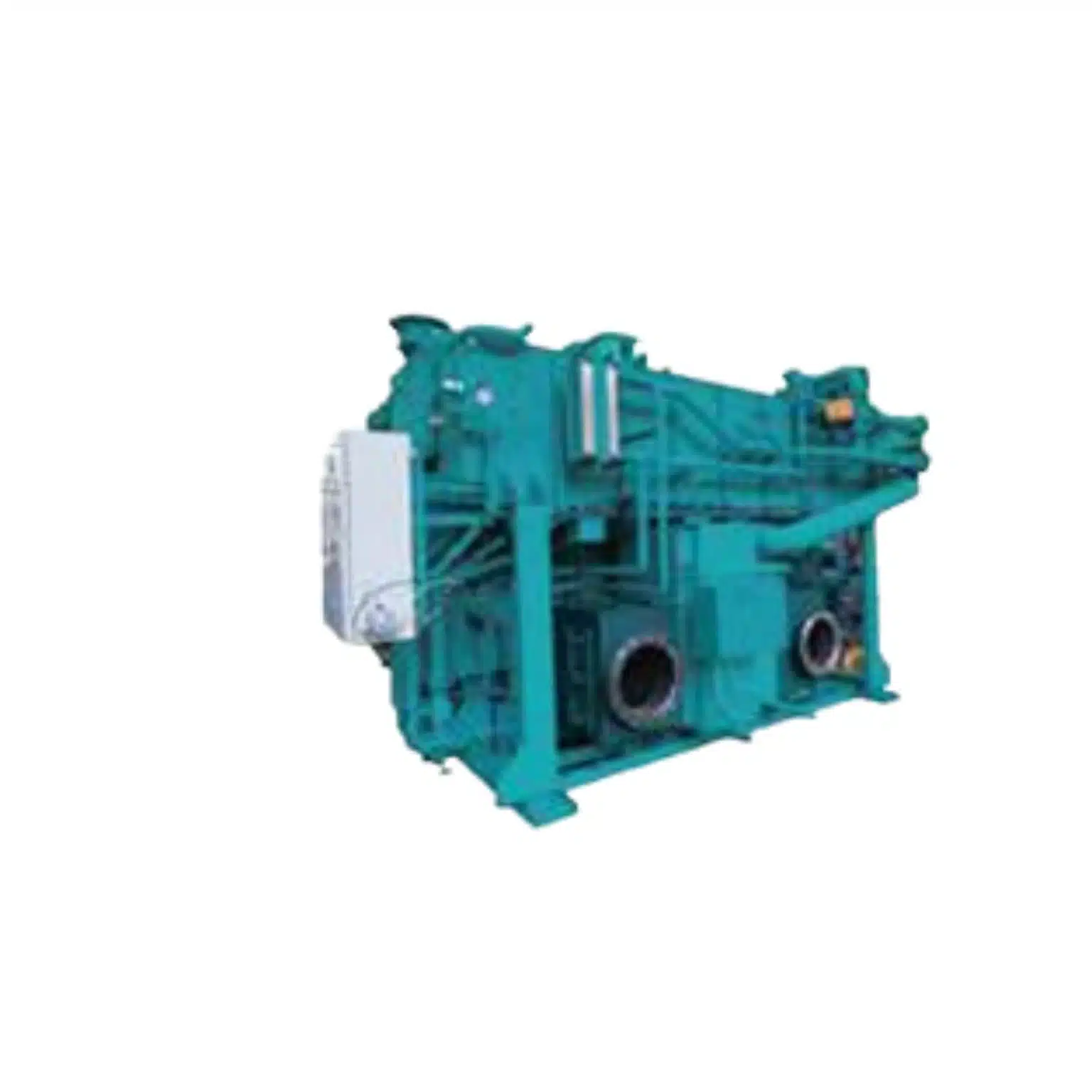

EXHAUST GAS

  1. Double Effect Exhaust Gas
  2. Model: YHAU-CE
  3. Capacity: 527 – 5,064 kW / 150 – 1,440 TR
  4. Application: Combined heat and power (CHP), commercial cooling

EXHAUST GAS AND LOW TEMPERATURE HOT WATER

  1. Multi Energy Exhaust and Jacket Hot Water
  2. Model: YHAU-CE-J
  3. Capacity: 527 – 5,064 kW / 150 – 1,440 TR
  4. Application: Combined heat and power (CHP), commercial cooling

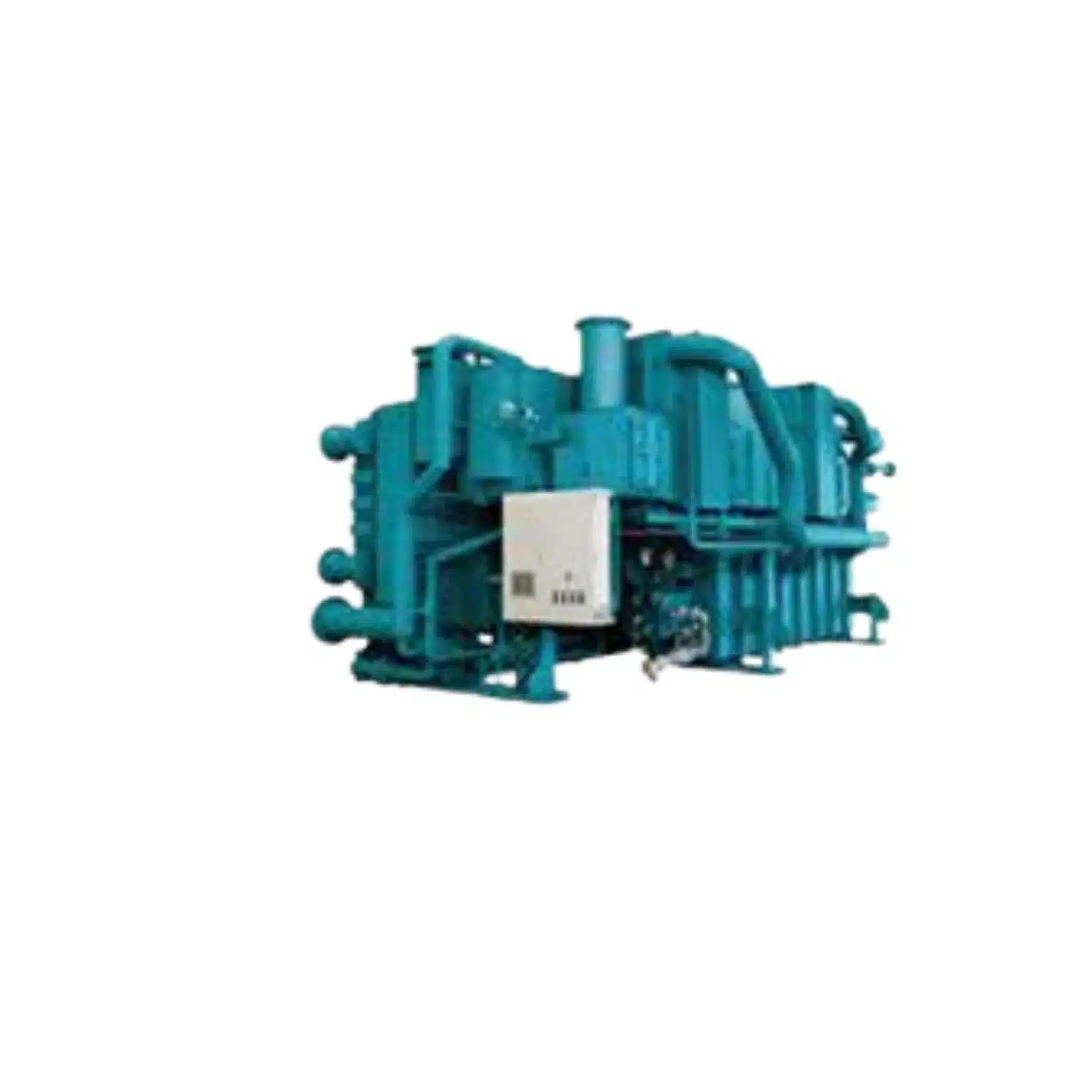

EXHAUST GAS AND LOW TEMPERATURE HOT WATER AND DIRECT FIRED

  1. Multi Energy Exhaust, Jacket Hot Water, Direct Fired
  2. Model: YHAU-CGE-J
  3. Capacity: Custom
  4. Application: Combined heat and power (CHP), commercial cooling

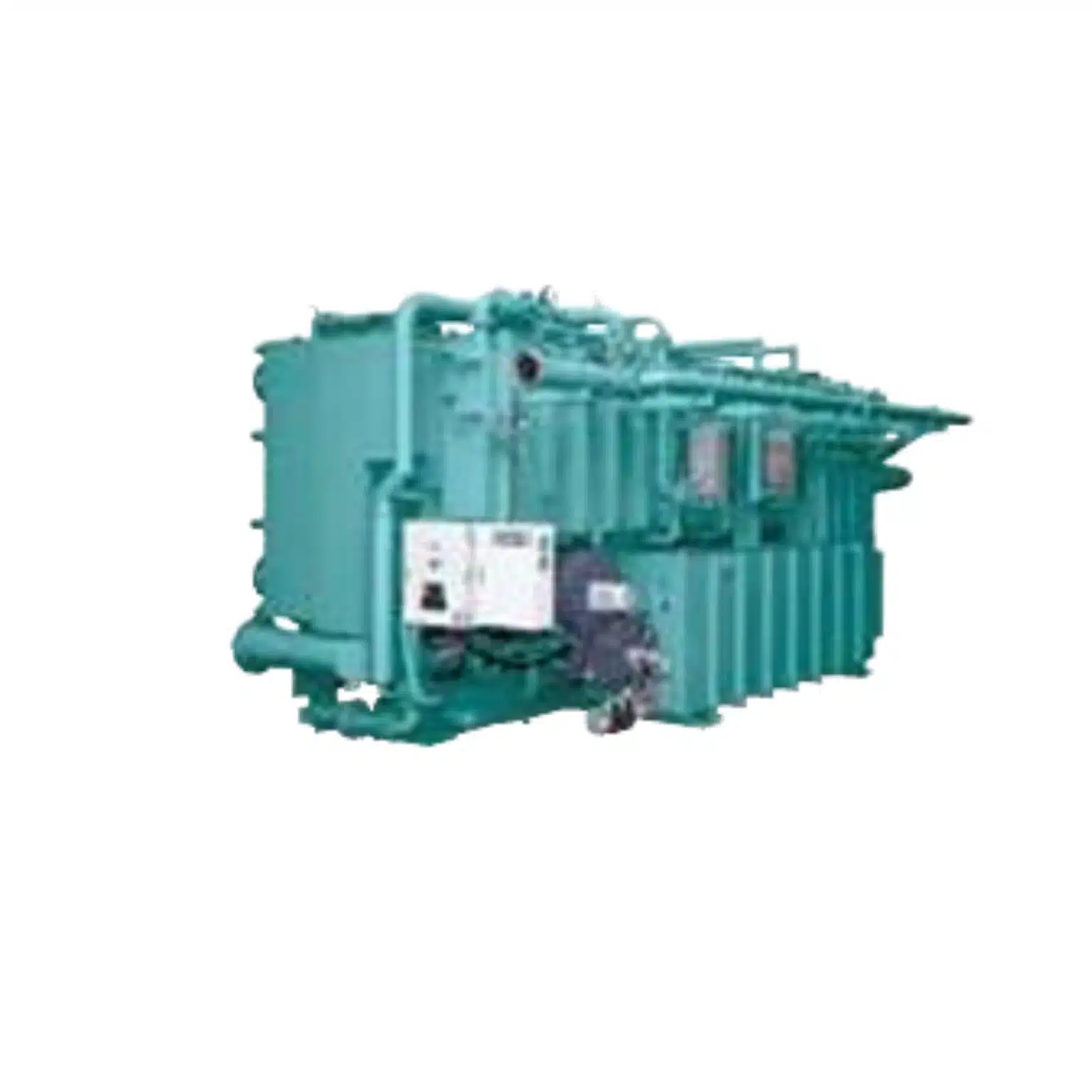

NATURAL GAS AND LOW TEMPERATURE HOT WATER

  1. Gas Gene-Link
  2. Model: YHAU-CG-J
  3. Capacity: 422 – 5,626 kW / 120 – 1,600 TR
  4. Application: Combined heat and power (CHP), commercial cooling

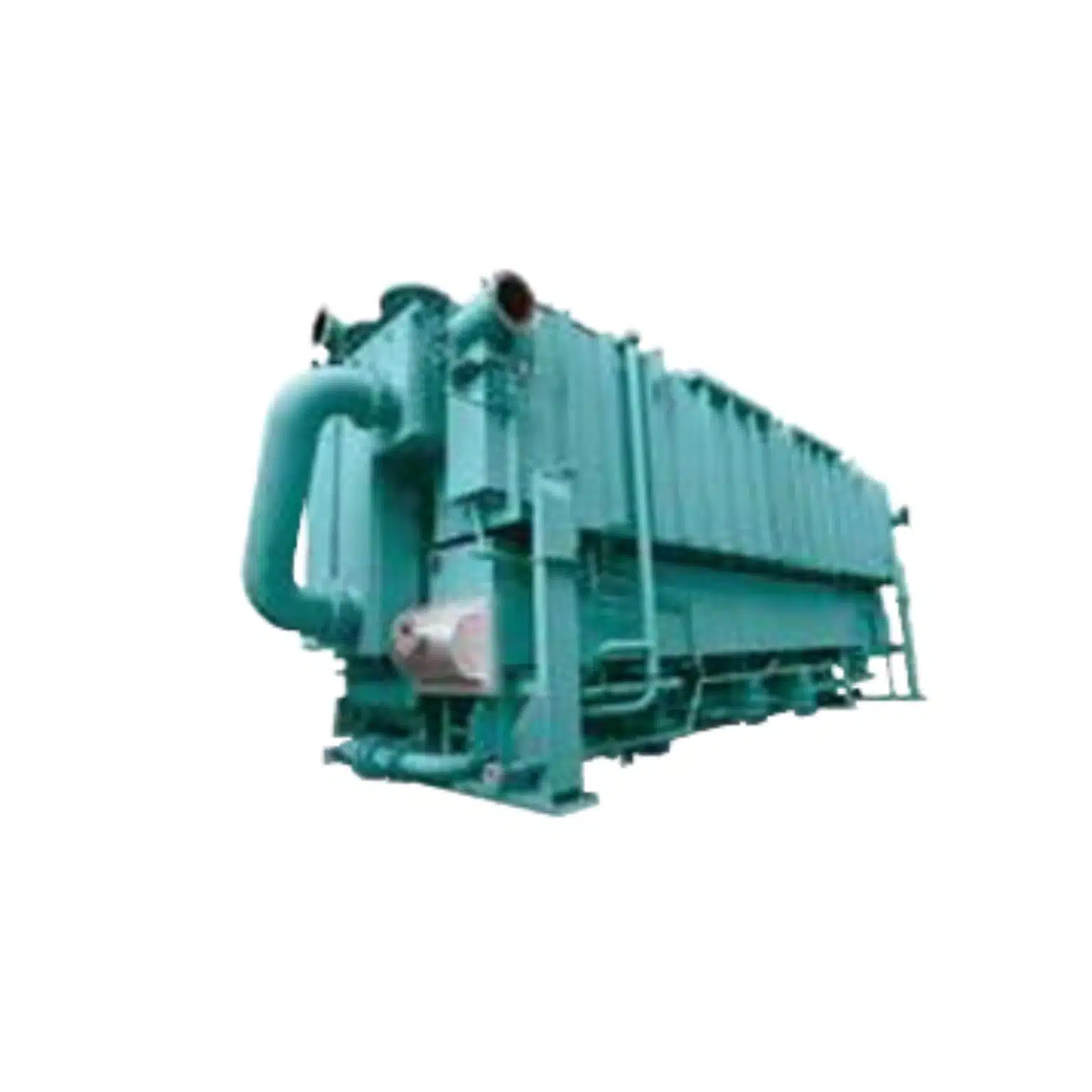

MEDIUM PRESSURE STEAM AND LOW TEMPERATURE HOT WATER

  1. Steam Gene-Link
  2. Model: YHAU-CW-J
  3. Capacity: 422 – 14,067 kW / 120 – 4,000 TR
  4. Application: Combined heat and power (CHP), industrial process cooling

HOT WATER, STEAM, DIRECT FIRED

  1. Low Leaving Chilled Water Temperature (Down to -5°C)
  2. Model: YHALC-LL
  3. Capacity: 176 – 1,758 kW / 50 – 500 TR
  4. Application: Industrial process cooling / refrigeration

HOT WATER, STEAM, DIRECT FIRED

  1. Absorption Heat Pump (Up to 90°C)
  2. Model: YHAP
  3. Capacity: Custom
  4. Application: District heating, industrial process heating
